⭐Please note⭐

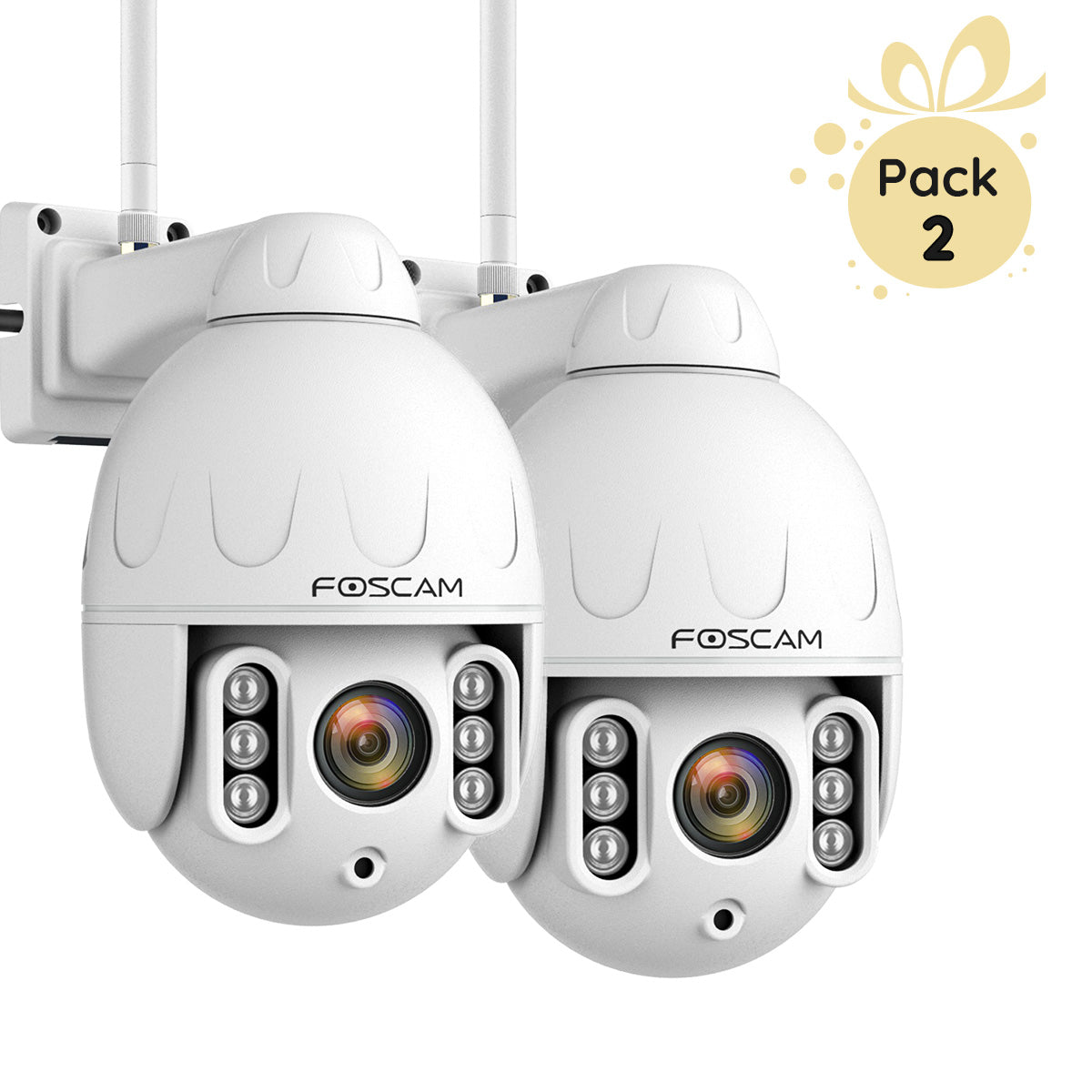

🎁The product is in a buy one get one free promotion
😝If you buy one, You will only receive 2 items, not 4
✈Free standard shipping within the U.S
📨If you have any questions, please contact support@foscam.com for help!

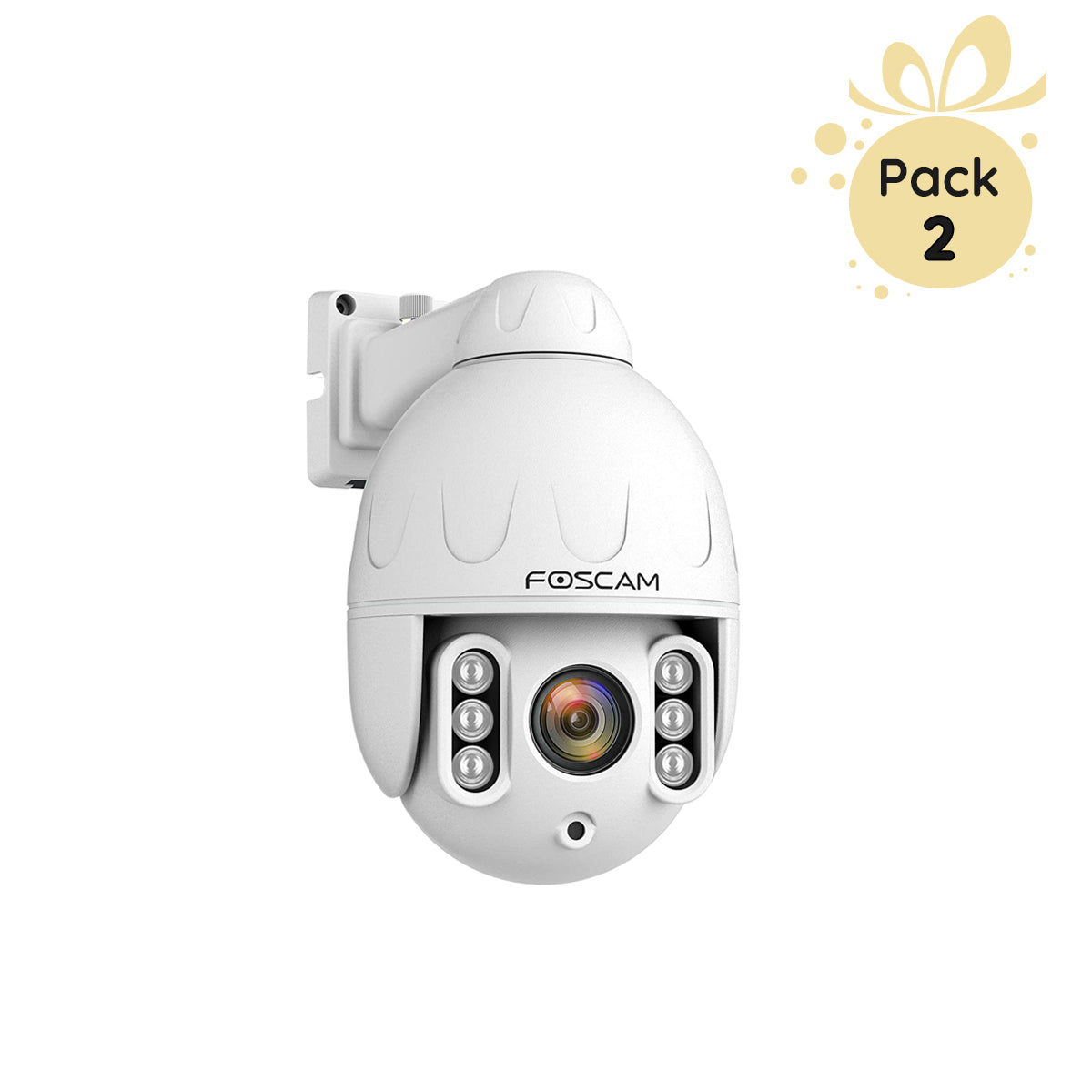

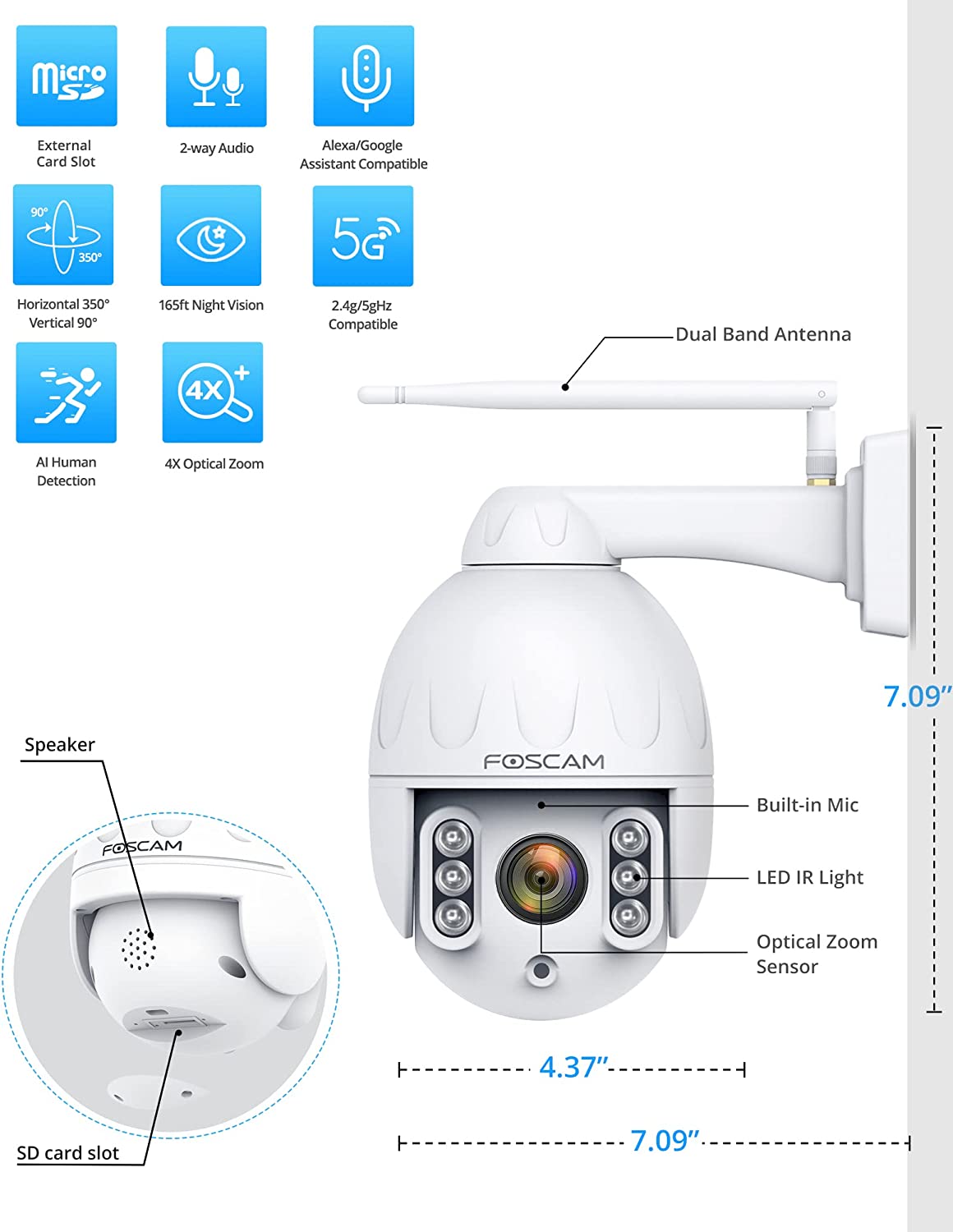

360°Field of View with Pan Tilt & 4X Optical Zoom
Horizontal 350°Vertical 90°Pan Tilt Rotation with 4X Optical Zoom provides you a much broader and flexible view of cameras for home security, giving 360° protection, and no blind spots. Up to 8 Presets function also enables you to monitor places you saved just in seconds on the Foscam app.
Smart PIR Human Detection
Based on the latest AI algorithm and PIR sensor, our security cameras can identify persons, pets, vehicles, and parcels with the cloud service, and support adjusts sensitivity levels to minimize false alarms. Meanwhile, the wifi camera can wake up rapidly when detecting motions, records videos, sends instant alerts to the app.
4MP Ultra HD & 165ft Night Vision
SD4 upgrade images resolution of 2304*1536, times clearer than 1080P. Equipped with the 6 powerful LED IR lights, the outdoor security camera will automatically sense the light and switch to the night vision model and provide clear night vision images up to 165ft even in darkness.

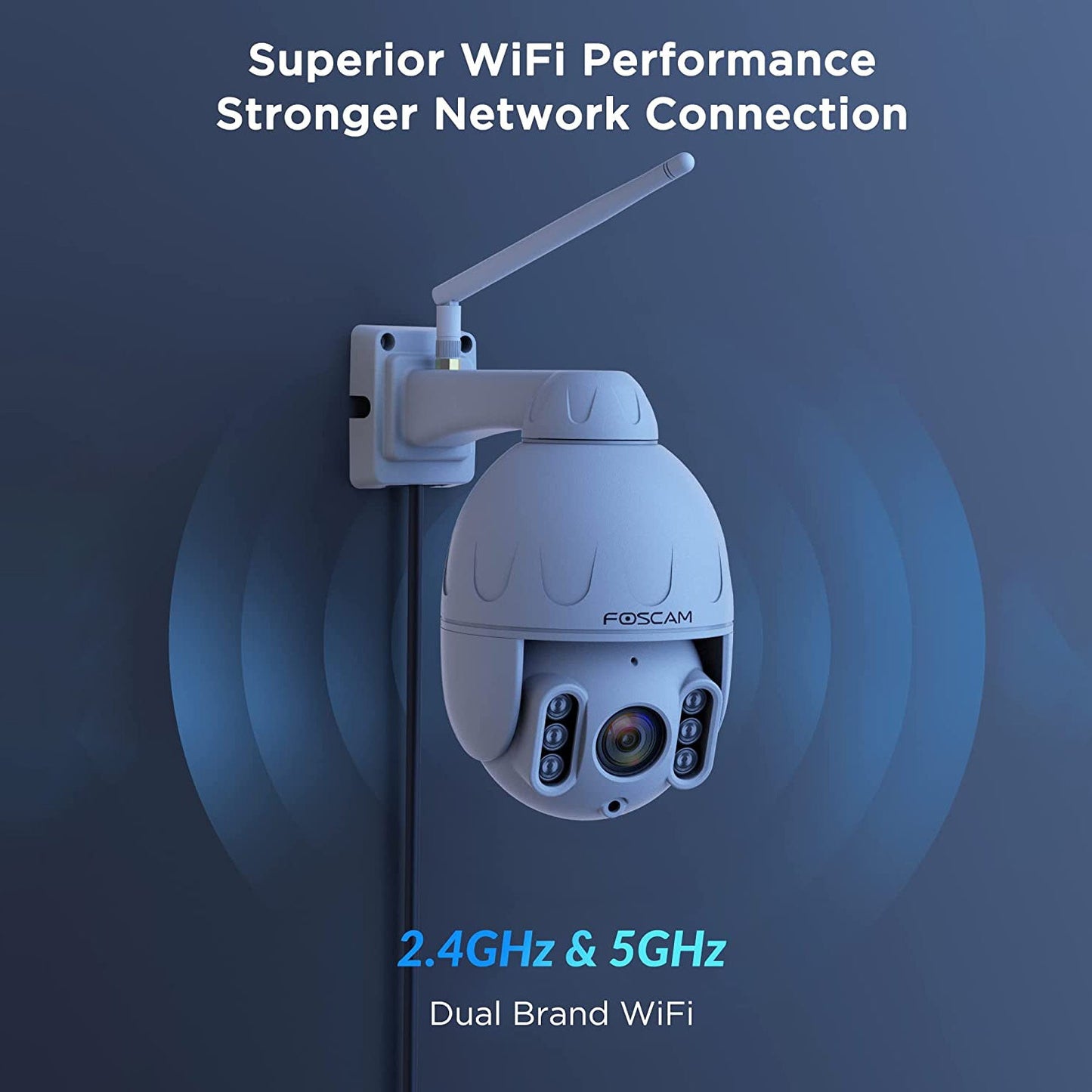

Compatible with 2.4g/5gHz Wifi
Powerful 2.4GHz & 5GHz Dual Band WiFi chipset brings stable and longer WiFi transmission distance with WEP/WPA/WPA2 encryption, bringing you a smooth video experience. Get access to your camera via foscam app just in seconds, anytime anywhere.
Customer Questions & Answers
-
Does the SD4 camera have an email push feature like other Foscam Cameras?
Yes, it has an email push feature. Please download our Foscam VMS software on our official website to set it. Here's the setting method below,
Step 1: Setup the email service settings.
Step 2: Setup the Motion Alarm Trigger Settings Navigate to Settings -> Alarm -> Motion Detection 1) Check the “Enable” Option -> 2) Choose “Send E-mail” for the alarm action 2) Set the Detection Area, set the Schedule. 3) Do not forget to click “Save” after the settings are completed.
-
Do I have to subscribe to the cloud service to use the camera?
No, cloud service is not required. You can save clips in your Micro SD card or FTP. And you can lively view the camera anytime when connected to the internet.
-
Can we configure it with my computer or desktop?
Sure, you can. And we suggest our customer use Foscam VMS software that can be downloaded on our website.
-
How can I know the original password of my camera?
No password is needed. You can configure it with our Foscam APP directly without a password the first time. A new password is needed when the installation is done.
Item | Model | SD4 |
---|---|---|
Color | Color | White |
Chipset | CPU | MSC316DC |
Video | Optical zoom | 4X |
Lens Type | f:2.8~12mm,F:1.4-2.8 | |
Sensor Type | 1/2.9"CMOS | |
Angle of View | Horizontal:38.6°~80.7° Diagonal :42.2°~ 93.2° |
|
Min. Illumination | 0 Lux | |
Display Resolution(Max) | 4.0MegaPixels (2304*1536) |
|
IR-LED | 6pcs IR-LEDs | |
Night Vision | 50m | |
Infrared mode | Automatic or manual | |
IR-CUT | ✔ | |
Image Frame Rate | 25fps(1080P)/15fps (720P), downward adjustable | |
Resolution | 1080P(1920x1080) ,720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) | |
Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable | |
Mirro/Flip | ✔ | |
WDR | Improve image clarity in complex scenario | |
Image Compression | H.264 | |
Stream | dual stream | |
Network | Network Protocol | IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、RTSP、ONVIF |
P2P | ✔ | |
ONVIF | ✔ | |
Built-in DDNS Server | N/A | |
Interface | Power Jack | DC |
Power Supply | DC 12V/2.0A | |
Ethernet | One 10/100Mbps RJ45 port | |
SD Card Slot | ✔(External) | |
SD Management | ✔ | |
802.3af PoE | N/A | |
External I/O | N/A | |
RS485 | N/A | |
Reset | Reset button is available | |
Audio in/out | ✔ | |
2-Way Audio | ✔ | |
Wifi | Wireless Standard | IEEE802.11b/g/n/ac |
Wireless Security | WPA, WPA2 | |
Data Rate | IEEE802.11b: 11Mbps(Max.); IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.). IEEE802.11ac: 433Mbps(Max. |
|
EZLink | ✔ | |
WPS | N/A | |
SoftAP | N/A | |
Alarm | Motion Detection | ✔ |
Human Detection | ✔ | |
PIR Detection | N/A | |
Sound Detection | ✔ | |
Temp. Detection | N/A | |
Humidity Detection | N/A | |
Alarm Record | ✔ | |
Schedule Record | ✔ | |
E-mail/FTP Alarm | ✔ | |
Storage | Micro SD card(max128G ),local,NVR,FTP and Cloud storage | |
Software Features | PT | (Pan/Tilt angle: H=350°, V=90°) |
Preset | ✔ | |
Cruise | ✔ | |
Magic zoom | N/A | |
Digital zoom | 6X | |
Multi-camera | ✔ | |
Snapshot | ✔ | |
Playback | ✔ | |
DST | ✔ | |
Privacy zone | N/A | |
Nursery Rhymes | N/A | |
Cloud Storage | ✔ | |
Pushing message | ✔ | |
User Accounts | Three levels user role | |
IP Filtering | ✔ | |
Intelligent Assistant | Intelligent Assistant | Supports Alexa,Google Assistant |
System Requirements | Operating System | PC: Windows, Mac OS; Smartphone: iOS, Android |
Browser | Microsoft IE8 and above version or compatible browser; Google Chrome; Apple Safari. |
|
Physical | Dimension(LxWxH) | 180(L) *111(W) *180(H) mm |
Net Weight | 1000g | |
manual Pan/Tilt Angle | N/A | |
Power Consumption | <20W | |

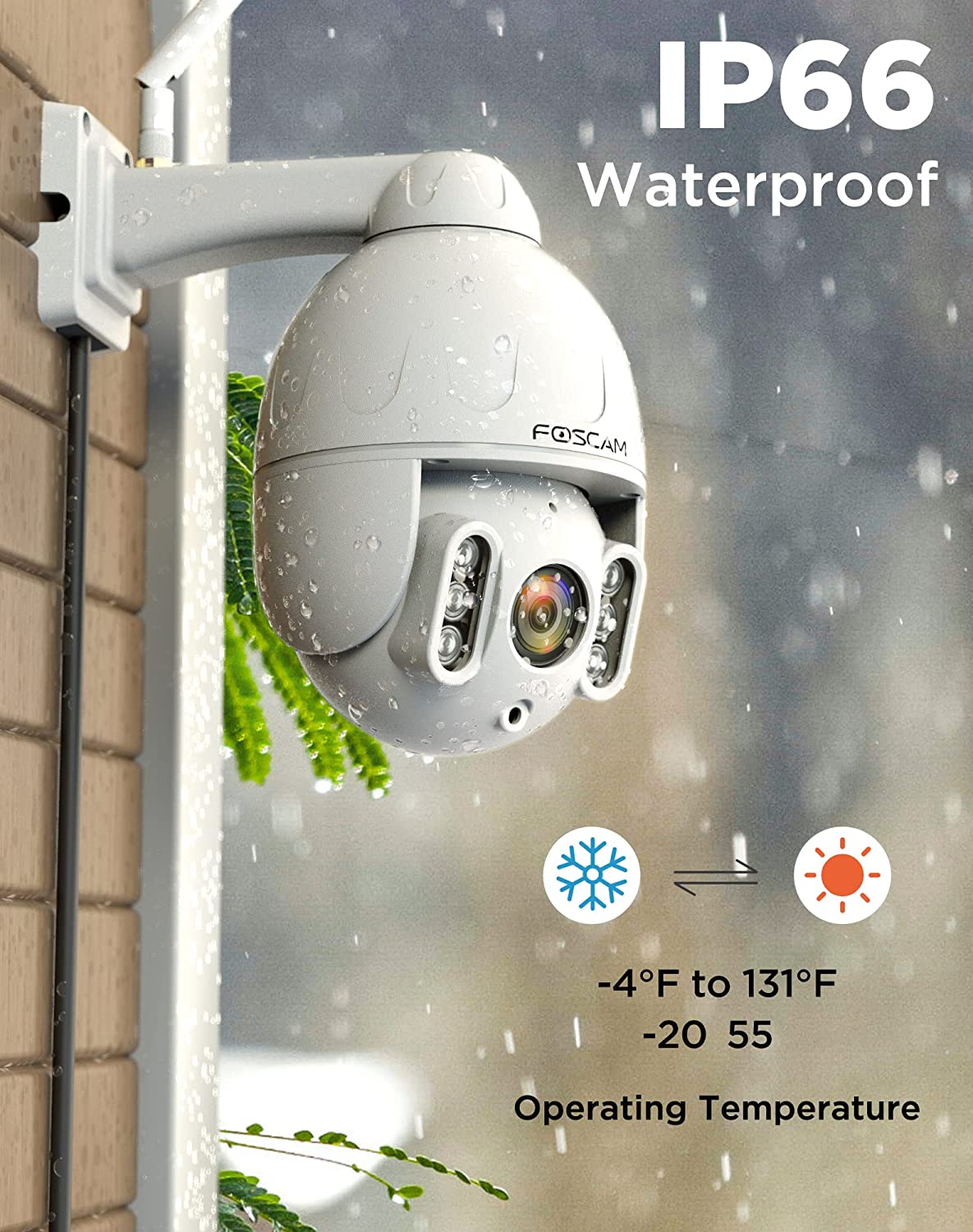

Environment | Waterproof | IP66 |
Vandal-Proof | ✔ | |
Operating Temperature | -20°C~ 60°C (-4°F ~ 140°F) | |
Operating Humidity | 20% ~ 85% non-condensing | |
Storage Temperature | -20°C ~ 50° (-4°F ~ 122°F) | |
Storage Humidity | 0% ~ 90% non-condensing | |
Others | Certification | CE, FCC, RoHS,WEEE |
Foscam always cares in every customer's experience and feedback on the product.
- For quick setup, we suggest you to download foscam app on your phone or VMS software on pc first. Download Foscam app free from the App Store or Google play.
- Foscam SD4 is a 2.4g/5ghz wifi camera with 4X optical zoom.Please confirm the antenna is already screwed well on the camera before configure it.
- Please confirm the wifi signal is good enough for the camera to connect. If there're some several obstacles between the camera and your router, this would also decrease the stableness of the signal.We suggest you try to get a better place with better signal or use the 2.4Ghz wifi channel to connect. If needed, use a ethernet cable to configure it.
- Please confirm the camera is already upgraded to the newest firmware version once connected as we will keep upgrade our firmware to help customer get better experience.(Steps for app to upgrade firmware:Foscam APP>>Device>>Firmware>>update)
- If you wanna save clips in your Micro SD card, please confirm that it's in exfat 32 format already. You can get the tools from Foscam Download Center.
All products from foscam on our store come with a 1-year manufacture warranty. Please feel free to contact us via support@foscam.com if you have problems with the camera or installation. Our 14-year professional support team will help you with it.
