Complete Coverage
350° horizontal and 90° vertical rotation, almost covering 360° of view without blind zone. 18X optical zoom with autofocus lets you experience every perfect close-up detail.
2.4Ghz & 5Ghz Dual-band Wi-Fi Connection
This outdoor security camera works with a 2.4g/5ghz dual-band Wi-Fi network, providing the ultimate flexibility and performance, to let you experience smoother 1080 Full HD streaming.
Detect and Record Audio with Built-in Microphone
With a built-in microphone, this Wi-Fi camera allows you to hear clear sound on your phone and record audio directly to the microSD card or Foscam cloud.
Intelligent Detection & Message Push
Human/motion/sound detection with real-time alert notifications. You can choose the model of human detection, this home security camera can intelligently only detect human activities and decrease false alarms triggered by running pets, flying birds, or other moving objects.
Long-distance Night Vision
With efficient LEDs, this outdoor security camera can provide improved night vision up to 165ft (50.29 m) even in very low light conditions.
Voice Control
This Wi-Fi security camera supports Alexa & Google Assistant, you can check on Amazon Echo Show or Google smart devices to see who's at your front door or garden through voice commands and don't need to open the Foscam App on your mobile.
Frequently Asked Questions
-
Does the camera need to connect the power supply?
Yes, it is not a battery-powered camera. It needs to be plugged into the outlet for continuous and reliable power supply.
-
What’s the max storage of micro sd card?
It supports max 128G micro SD card.
-
Do I have to subscribe to cloud service to use the camera?
No! We never force customers to subscribe to the cloud service. Just connect to the power then you can see the live stream on your phone.
-
Does this camera maintain a constant video stream (without recording) that can be viewed in real time on my cellphone?
Yes so long as you’re in the Foscam app
ITEMS | SD2X | |
---|---|---|
Image Sensor | Sensor | CMOS Sensor 1/2.9 |
Display Resolution | 2.0MegaPixels(1920*1080) | |
Min. Illumination | N/A | |
Lens | Lens Type | 5.4mm-97.2mm |
Angle of view | Horizontal:3.55°~48.45° Diagonal :4.05°~54.67° |
|
Video | Image Compression | H.264 |
Image Frame Rate | 25fps(1080P)/15fps(720P)/, downward adjustable | |
Resolution | 1080P(1920x1080),720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) | |
Stream | Dual stream | |
Image adjustment | The hue, brightness, contrast, saturation, sharpness are adjustable | |
Flip image | flip and mirror | |
Infrared mode | Automatic and manual | |
Night visibility | 6pcs Infrared-LEDs, night vision range up to 50 metres | |
Audio | Input/Output | Supports two-way audio |
Audio Compression | PCM/G.726 | |
Network | Ethernet | One 10/100Mbps RJ45 port |
Wireless Standard | IEEE802.11b/g/n/ac | |
Data Rate | IEEE802.11b: 11Mbps(Max.); IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.). IEEE802.11ac: 433Mbps(Max.). |
|
Wireless Security | WPA, WPA2 | |
Remote Access | P2P | |
Network Protocol | IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、RTSP、ONVIF | |
System Requirements | Operating System | Microsoft Windows XP, 7, 8;Mac OS;iOS、Android |
Browser | Microsoft IE8 and above version or compatible browser; Mozilla Firefox, Google Chrome, Apple Safari | |
Other Features | Motion Detection | Supports motion detection |
Sound Detection | Supports sound detection | |
AI | Human detection | |
User Accounts | Three levels user role | |
Firewall | Supports IP Filtering | |
Reset | Reset button is available | |
Intelligent Assistant | Suppports Alexa, Google Assistant | |
Storage | Micro SD card(max128G ), local, NVR, FTP and Cloud storage | |
Power | Power Supply | DC 12V/2.0A |
Power Consumption | 20 Watts (Max.) | |
Physical | Dimension(LxWxH) | 136 mm x 246 mm x 202 mm |
Net Weight | 1500g | |

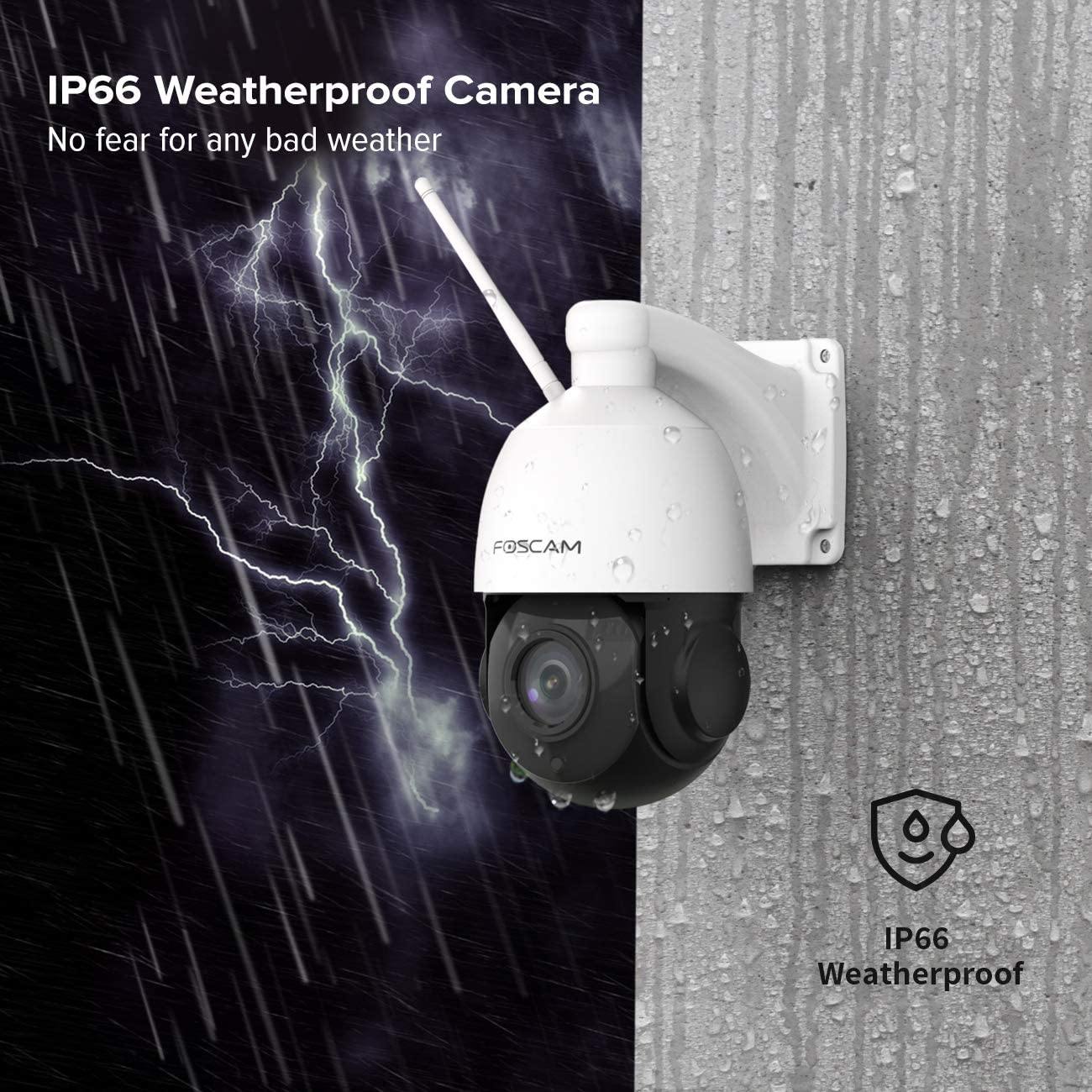

Environment | Waterproof | IP66 |
Operating Temperature | -20°C ~ 60° (-4°F ~ 140°F) | |
Operating Humidity | 20% ~ 85% non-condensing | |
Storage Temperature | -20°C ~ 60° (-4°F ~ 140°F) | |
Storage Humidity | 0% ~ 90% non-condensing | |
Certification | FCC、CE、RoHS、IP66 |
Foscam always cares in every customer's experience and feedback on the product.
- For quick setup, we suggest you to download Foscam app on your phone or VMS software on pc first. Download free Foscam apps from the App Store or Google play.
- SD2X is a 2.4g/5ghz Wi-Fi camera with 18X optical zoom. Please confirm the antenna is already screwed well on the camera before configure it.
- Please confirm the Wi-Fi signal is good enough for the camera to connect. If there are some several obstacles between the camera and your router, this would also decrease the staleness of the signal. We recommend you try to get a better place with better signal or use the 2.4Ghz Wi-Fi channel to connect. If needed, use an Ethernet cable to configure it.
- Please confirm the camera is already upgraded to the newest firmware version once connected, as we will keep upgrade our firmware to help customer get better experience. (Steps for app to upgrade firmware:Foscam APP>>Device>>Firmware>>update)
- If you want to save clips in your Micro SD card, please confirm that it's in exFAT 32 format already.
All products from foscam on our store come with a 1-year manufacture warranty. Please feel free to contact us via support@foscam.com if you have problems with the camera or installation. Our 14-year professional support team will help you with it.
